Cigarette Smoke Detector: detector inside fake sprinkler head

STEALTH Cigarette Buster - Covert Sprinkler Mount
Model 76 Series

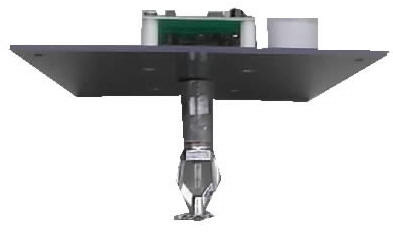

A Cigarette Smoking Detector concealed in FAKE SPRINKLER HEAD for installation above ceiling line. Detector can work alone via internal alarm, transmit signal to nearby horn/strobe, or be integrated with remote paging system.
Our System Selection Guide explains these options. Print-ready datasheet

STEALTH SYSTEMS:
   Internal Alarm
   Common Courtesy
   Short Range Wireless
   Central Office Receiver
   Wireless Paging System
   Hardwired
   Text Messaging
   Evidence Collection
System Selection Guide

DETECTORS:
Cigarette Smoking Detectors:
   5200 - Smoke Detector Shell
   7400 - Surface Mount
   7600 - Fake Sprinkler Head
   7700 - Deodorizer Mount
   7800 - Speaker Grill
   7900 - Air Vent
       7978 - Air Vent Talker
2000 - Loiter Alarm
3000 - Vehicular Smoke Detector
8000 - Cigarette Smoke Detector
9000 - 2nd Hand Smoke Detector

RECEIVERS:
   Wired or Short Range Wireless
   Central Office Wireless
   Long Range Wireless
All CigaretteBuster^TMProducts

PROVEN TRACK RECORD:
Customer List
What Our Customers Say
HAVE DINNER ON US!
...with New Customer Referral
Central Office Receiver

Wireless Paging System
   Hardwired
System Selection Guide

DETECTORS:
Cigarette Smoking Detectors:
   5200 - Smoke Detector Shell
   7400 - Surface Mount
   7600 - Fake Sprinkler Head
   7700 - Deodorizer Mount
   7800 - Speaker Grill
   7900 - Air Vent
       7978 - Air Vent Talker
2000 - Loiter Alarm
3000 - Vehicular Smoke Detector
8000 - Cigarette Smoke Detector
9000 - 2nd Hand Smoke Detector

RECEIVERS:
   Wired or Short Range Wireless
   Central Office Wireless
   Long Range Wireless
All CigaretteBuster^TMProducts

PROVEN TRACK RECORD:
Customer List
What Our Customers Say
HAVE DINNER ON US!
...with New Customer Referral

WARRANTY
LINKS
ABOUT US
SITE MAP

Models:

7610 - Battery - Long Range wireless output to receiver (up to 1000') integrates with paging system (up to 1.5 miles)
7620 - Battery - Local (internal) alarm
7630 - Battery - Short Range wireless output to horn/strobe(20-50')
7640 - 12 vDC - Wired relay output to horn/strobe (up to 5000')
7650 - 12 vDC - Local (internal) alarm and wired relay output.

Technical Information

Physical

Height - 5.5 inches (14 cm)

Width - 9.75 inches (24.75 cm)
Height - 2" (5 cm) above ceiling
Height - 3.5" (8.9 cm) below ceiling)

Weight - 1 lb ( 0.45 kg)
Installation - 4 screws

Electrical

Four AA Batteries
12 vDC, 4.7 ma
Output Relay contact rating 3A
Open collector output

Performance

Coverage - 200 sq ft - 360 degree Line Of Sight (LOS)
Battery Life - One Year
Delays - 0 or 30 seconds
Latch time - 3 or 30 seconds
Alarm volume - 80-90 dB

* Latch time and delay can be shortened (3 secs/0 secs) upon request for special circumstances. Settings are preset for best effect based upon years of research.

Covered by US Patent 6,545,608 100% in-house tested before shipping
