STEALTH Cigarette Buster - Surface Mount
Model 74 Series

A Cigarette Smoking Detector in an easy to install steel shell.

Detector can work alone via internal alarm, transmit signal to nearby horn/strobe, or be integrated with remote paging system.  Vandal-resistant option available.
Our System Selection Guide explains these options.              Print-ready datasheet

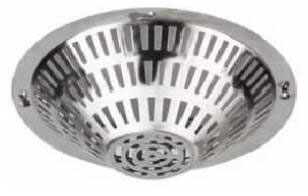

cigarette smoke detector surface mount cigarette smoke detector tamer-trigger cage
Standard vandal resistant cage Metal cage (vandal trigger models) only



Models
    • 7410 - Battery - Long Range wireless output to receiver (up to 1000') integrates with paging system (up to 1.5 miles)
    • 7415 - Battery - Long Range wireless output with Vandal Trigger
    • 7420 - Battery - Local (internal) alarm
    • 7425 - Battery - Local (internal) alarm with Vandal Trigger
    • 7430 - Battery - Short Range wireless output (20 - 50 ft)
    • 7435 - Battery - Short Range wireless output with Vandal Trigger
    • 7440 - 12 vDC - Wired relay output (up to 5000 ft)
    • 7445 - 12 vDC - Wired relay output with Vandal Trigger
    • 7450 - 12 vDC - Local (internal) alarm and wired relay output
    • 7460 - ac 120 v - SMS Text Messaging
Technical Information

  • Physical
    • Diameter - 11 inches (28 cm)
    • Height - 3.5 inches (9 cm)
    • Weight - 2 lb ( 1.14 kg)
    • Installation: 4 screws
  • Electrical
    • Four AA Batteries
    • 12 vDC, 4.7 ma
    • Output Relay contact rating 3A
    • Open collector output
  • Performance
    • Coverage - 200 sq. ft.; 360 degrees Line of Sight (LOS)
    • Battery Life - One Year
    • Delays - 0 Sec or 30 sec
    • Latch time - 3 seconds or 30 seconds
    • Alarm volume (models 7420, 7425, 7450 only - 85 dB
Covered by US Patent 6,545,608                100% in-house tested before shipping
